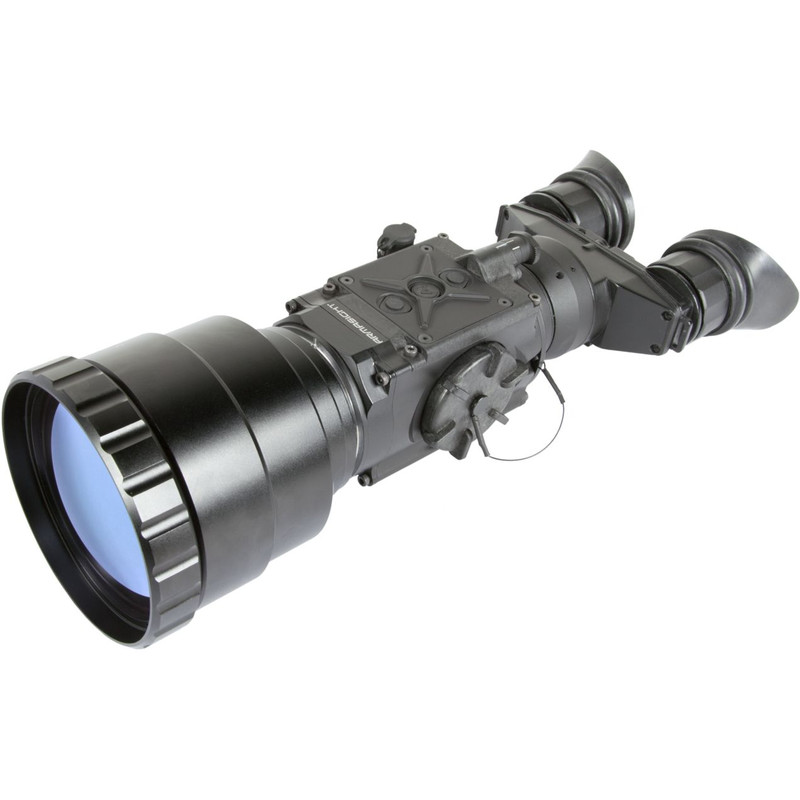

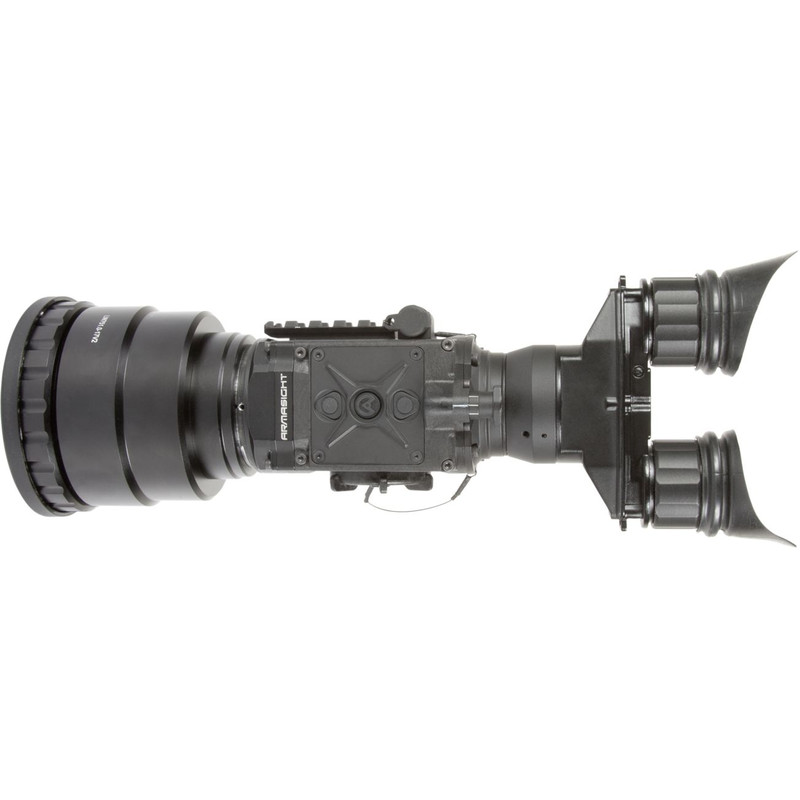

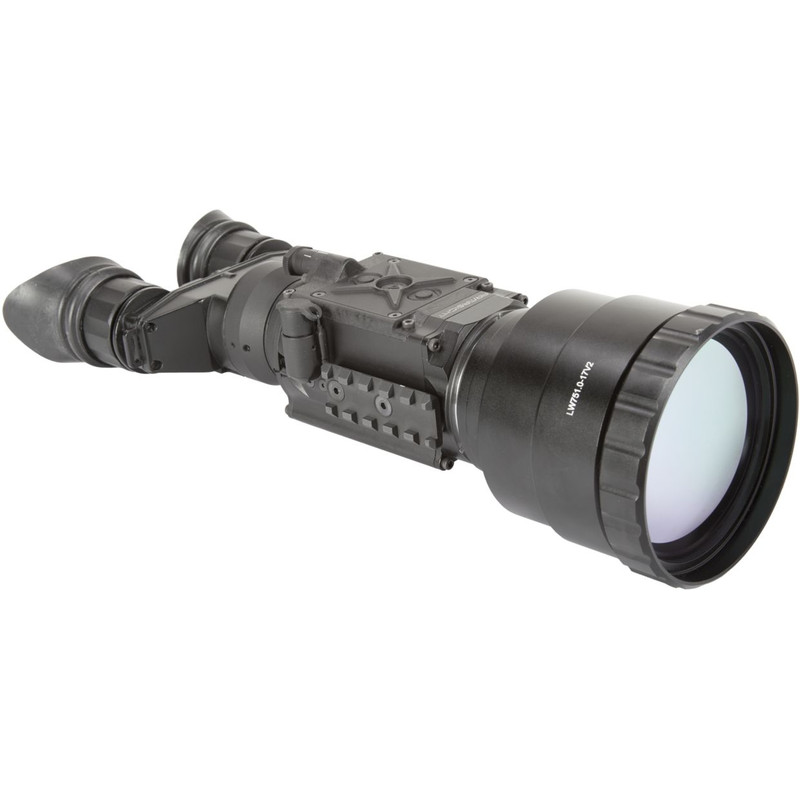

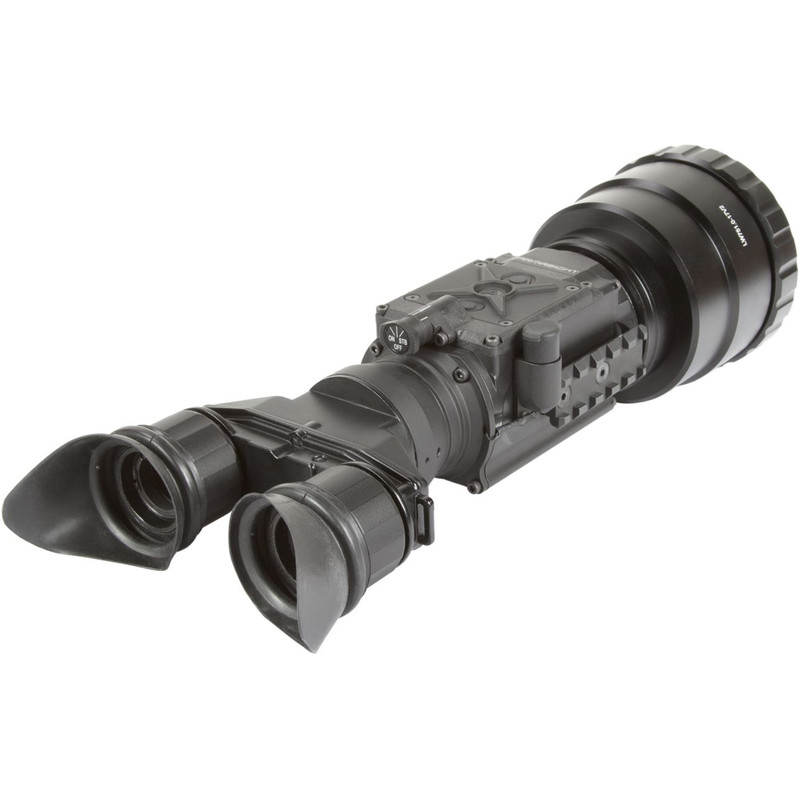

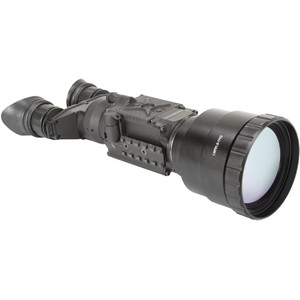

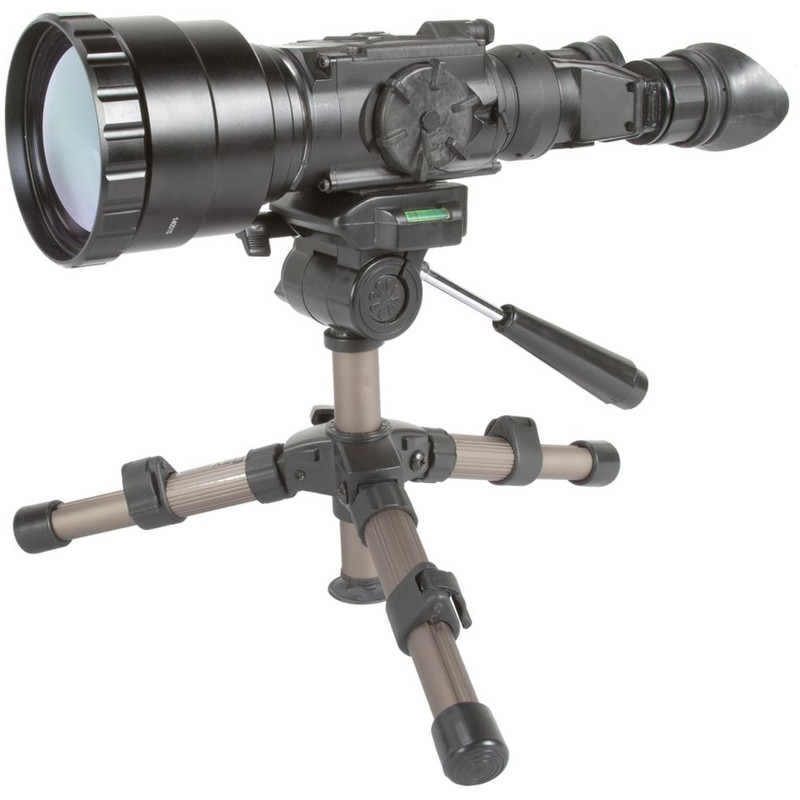

Armasight Command
The Command is the most technologically-advanced Thermal Imaging bi-ocular for the sporting, law enforcement, and military markets. The Command is based on the advanced FLIR VOx microbolometer core that is suitable for a variety of uses and missions.
The Command is a solid state, uncooled, long-wave infrared, magnified, dedicated handheld thermal imager intended for day and nighttime missions. The 24/7 mission capability is only one of the strengths of the Command bi-ocular. The thermal imaging technology also allows you to detect targets by cutting through snow, dust, smoke, fog, haze, and other atmospheric obscurants. Unlike the use of laser targeting or near-infrared illumination to augment night vision equipment, the Command thermal imager is extremely difficult to detect with other devices, as it emits no visible light or RF energy.
Special User-Adjustable Imaging Tools
- Active Contrast Enhancement (ACE) – a digital “Contrast” correction that allows for a smart scene optimization based on dynamic adjustments where a variety of contrast levels occur depending on relative scene temperature.
- Second Generation Digital Detail Enhancement (DDE) – a “Sharpness” correction that is digitally enhances the picture to present clearer imagery, significantly improves edge sharpening and further reduces image noise.
- Smart Scene Optimization (SSO) – a fine-tuning computational correction that significantly improves an overall visual acuity for targets that have thermal signatures similar to a surrounding background.
- Automatic Gain Control (AGC) – a “Gain” correction that used to automatically adjust the gain to an appropriate range, the weaker the image signal, the stronger the gain.
- User-Controlled Manual Non-Uniformity Correction/Flat-Field Correction (UCMNUC/FFC). There is a mechanical shutter between the camera sensor and the lens. This shutter is used to perform a non-uniformity correction (NUC) also known as flat-field correction (FFC. During FFC, the shutter presents a uniform temperature source to each detector element in the array. While imaging the flat-field source, the camera updates the offset correction coefficients, resulting in a more uniform image after the process is complete. All Command models allow for user to manually trigger or interrupt scheduled UCMNUC/FFC function.
- Silent Shutterless NUC ™ (SSN) – In addition to user controlled manual NUC/FFC all Command models employ a digital supplemental non-mechanical flat-field correction that allows to extend the periods between mechanical shutter events and to further reduce image noise. SSN is always ON enhancement.
FEATURES
- High-performance thermal imaging camera
- Lightweight and robust design
- Easy to operate
- Manually adjustable eyepiece and objective lens
- Real-time display
- Special user-adjustable imaging tools
- Current operational state information display
- Wireless remote control
- Analog video input and output
- Powered by two standard CR123A batteries
- Power input capability
- Digital video recorder (optional)
- Serviceability under severe conditions
- Filled with dry nitrogen to prevent internal fogging
Specification Command 336 5-20x75 (60 Hz)
- Magnification 5,3 (NTSC) / 6,3 (PAL)
- Objective Lens Type Germanium
- Objective Focal Length 50mm
- Objective F-number 1:1
- Type of Focal Plane Array FLIR Tau 2
- Refresh Rate 60 Hz
- Pixel Array Format 336×256
- Pixel Size 17 µm
- Display Type AMOLED SVGA 060 800x600
- Video Recording Optional Digital Video Recorder with SD card slot
- Operating Temperature -40°C to +50°C (-40°F to +122°F)
