Astronomie > Teleskop-Zubehör > Astrofotografie > Kameras > Astro-Kameras > Apogee > Alta > Apogee Kamera Alta F16M grade S
Artikel-Nr.: 53217

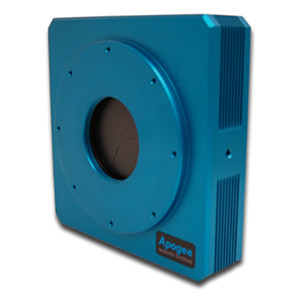

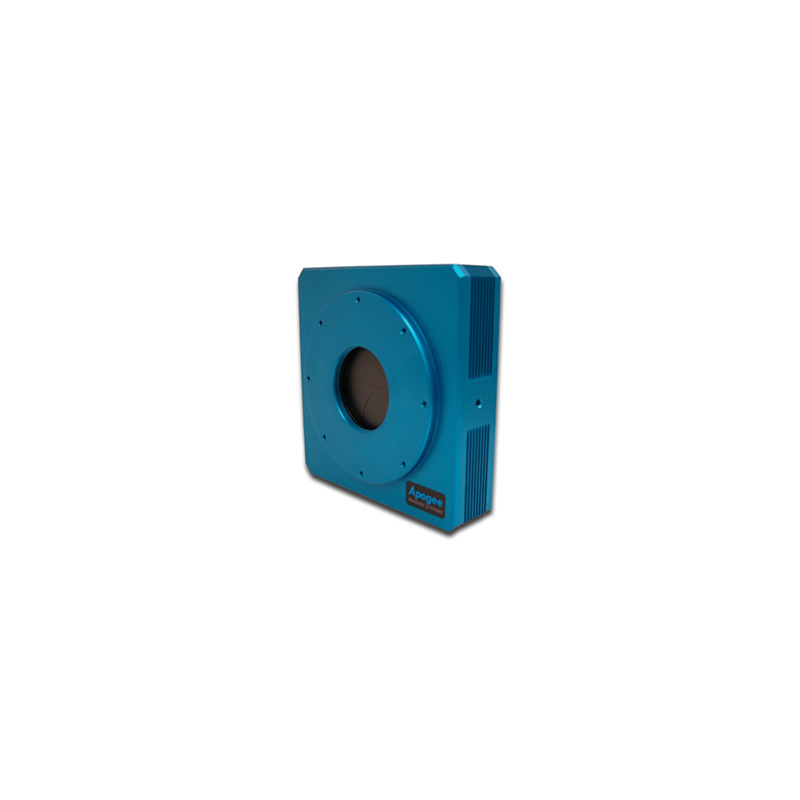

Kamera Alta F16M grade S

langfristig
Artikel nicht mehr verfügbar + Laufzeit

Artikelbeschreibung

Leider wurde diese Beschreibung bisher nicht ins Deutsche übersetzt, daher finden Sie an dieser Stelle eine englische Artikelbeschreibung.

The Apogee Alta family has been a mainstream of high end imaging for many years, offering a wide range of full frame and interline CCDs. Cooling performance down to 45° C below ambient ensures optimal signal to noise for long exposure applications. A USB 2.0 interface offers the convenience of simple, robust connection to PC.

Apogee Alta cameras are available with a wide variety of sensors, including: Back-illuminated sensors with very high quantum efficiency, some with sensitivity in the deep UV; Interline transfer sensors with fast electronic shuttering and inherent anti-blooming; front-illuminated CCDs with high sensitivity in the near-IR without etaloning and a range of resolution options up to 16.8 Megapixel.

Features and Benefits:

  • High resolution sensors: Sensors up to 16.8 Megapixel, offering large field of view at high resolution
  • Programmable TE cooling to 50 °C below ambient: Ideal for astronomy images, enabling long exposure acquisitions with optimized signal to noise ratio
  • High Dynamic Range: Large pixel sensor variants offer extended intrascene quantification of weak and bright objects
  • 16-bit digitization: High photometric accuracy
  • In built shutter: Shutter during readout and take dark reference frames - 25mm, 43mm or 63mm.
  • USB 2.0: Direct ‘Plug and Play’ connectivity
  • Programmable I/O port: Synchronization with intricate experimental set-ups
  • Remote triggering: LVTTL input allows exposure to start within 25 microseconds of rising edge of trigger
  • Focusing mode: Faster readout option, ideal for focus optimization
  • Precision locking filter wheels (optional): Choose from a range of Apogee family filter wheels, up to 10 position
  • Andor OEM optimization: Compact and robust, Andor integration support, Andor quality enhancement, Andor post-sale support. Now also supported by 'Andor SDK3'

The Alta F16M features the largest sensor in the Alta range - a very large format 16.8 megapixel full frame sensor with microlenses and transparent gate electrodes to maximize sensitivity, as well as anti-blooming structure. Cooling down to 45° Celsius below ambient results in a low darkcurrent contribution.
These features make the Alta F16M an ideal solution for applications requiring both a large field of view and optimal signal to noise ratio, such as DeepSky-astrophotography, sky surveys and radiology.

Special features:

  • Temperatur stability: +/- 0.1°C
  • Maximum Dynamic Range: 72.6 dB (4299:1)
  • Linearity: >99%
  • Camera Window: UV-grade fused silica
  • Image Sequencing: 1 to 65535 image sequences under software control
  • Shutter: 63mm
  • Blemish Specification: Grade S as per sensor manufacturer definition

Technische Daten

Leistung


Antiblooming
ja
Aktive Kühlung
ja
Farbkamera
nein
Schnittstellen
USB 2.0
Sensortyp
CCD-Chip (Kodak KAF-16803)
Chipgröße (mm)
36,8 x 36,8
Pixelgröße (µm)
9
Auflösung Foto (Pixel)
4096 x 4096
Full Well Capacity (Elektronen)
95.000
Bit-Tiefe (Bit)
16
Max. Differenz Kühlung unter Umgebungstemperatur (°C)
-45
Ausleserauschen (RMS)
22,1
Dunkelstrom (Elektronen pro Sekunde)
0,02
Binning
1 x 1 to 8x 4096
Mikrolinsen
ja
Megapixel
16,8
Auflagemaß (mm)
25,6
Belichtungszeit max. (min)
95
Chip-Diagonale (mm)
52

Allgemein


Außenmaße LxBxH (cm)
17,8 x 17,8 x 6,5
Gewicht (g)
1900
Serie
Alta

Anwendungsgebiete


AllSky, Meteore
nein
Autoguider
nein
Mond & Planeten
ja
Nebel & Galaxien
ja

Empfohlenes Zubehör

*Alle Preise inklusive der gesetzlichen Mehrwertsteuer, zzgl. Versandkosten.

Apogee Kamera Alta F16M grade S

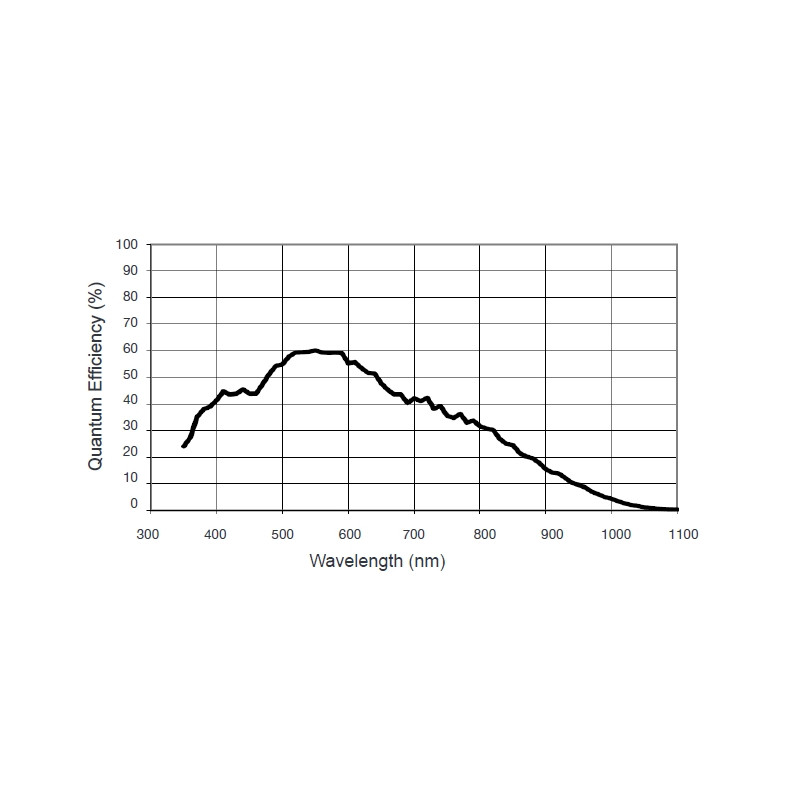

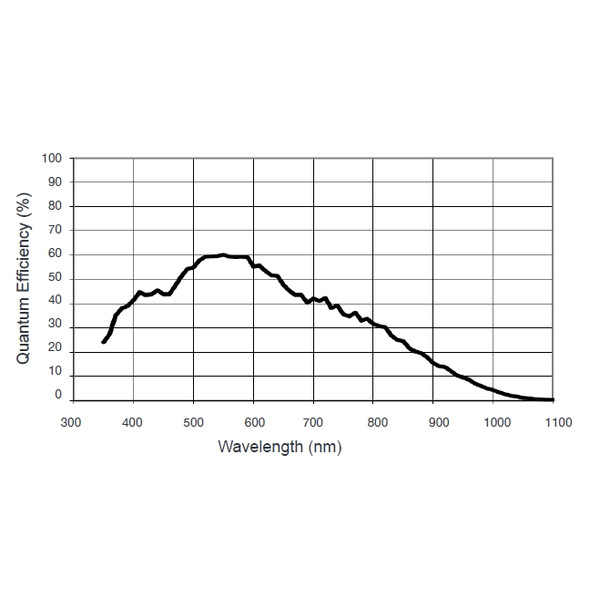

Quanteneffizienz
