Nachtsichtgeräte & Thermalkameras > Geräte > Thermalkameras > Armasight > Command > Armasight Thermalkamera Command 336, 3-12x50 (60 Hz)
Artikel-Nr.: 54556

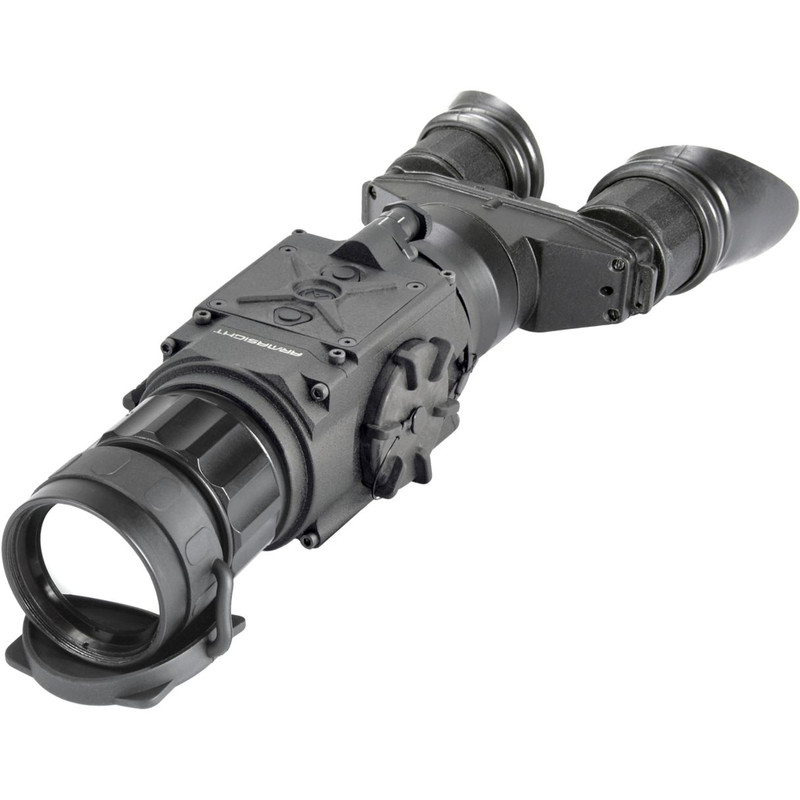

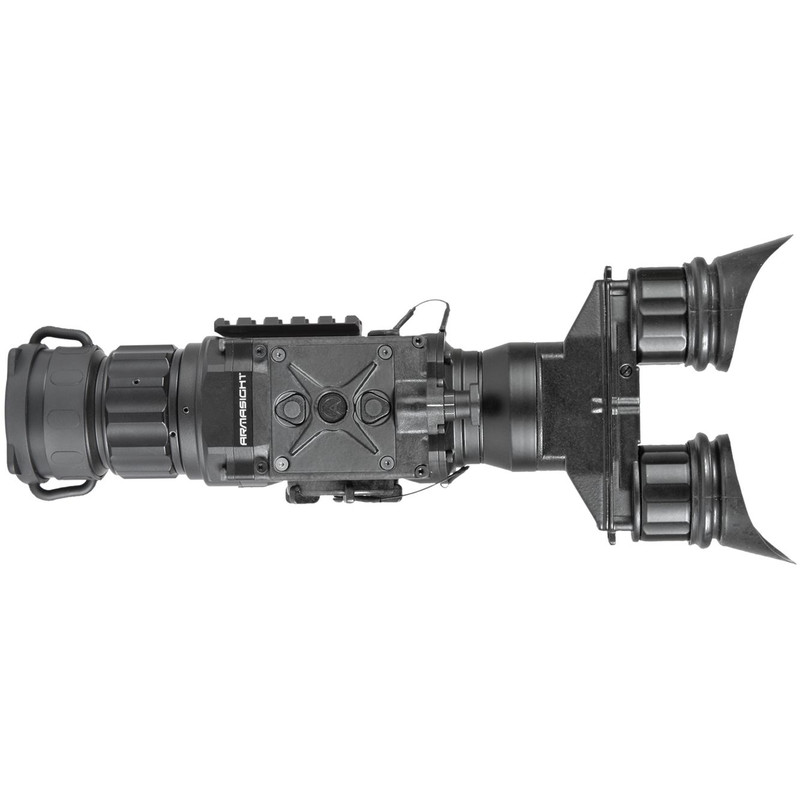

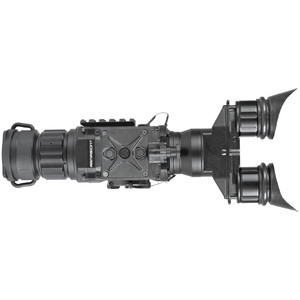

Thermalkamera Command 336, 3-12x50 (60 Hz)

langfristig
Artikel nicht mehr verfügbar + Laufzeit

Artikelbeschreibung

Hinweis! Die zugelassenen Exportländer für diesen Artikel sind: Argentinien, Australien, Belgien, Bulgarien, Dänemark, Deutschland, Estland, Finnland, Frankreich, Griechenland, Großbritannien, Irland, Island, Italien, Japan, Lettland, Litauen, Luxemburg, Neuseeland, Niederlande, Norwegen, Österreich, Polen, Portugal, Rumänien, Schweiz, Slowakei, Slowenien, Südkorea, Spanien, Schweden, Tschechien, Türkei und Ungarn.

Leider wurde diese Beschreibung bisher nicht ins Deutsche übersetzt, daher finden Sie an dieser Stelle eine englische Artikelbeschreibung.

Armasight Command
The Command is the most technologically-advanced Thermal Imaging bi-ocular for the sporting, law enforcement, and military markets. The Command is based on the advanced FLIR VOx microbolometer core that is suitable for a variety of uses and missions.

The Command is a solid state, uncooled, long-wave infrared, magnified, dedicated handheld thermal imager intended for day and nighttime missions. The 24/7 mission capability is only one of the strengths of the Command bi-ocular. The thermal imaging technology also allows you to detect targets by cutting through snow, dust, smoke, fog, haze, and other atmospheric obscurants. Unlike the use of laser targeting or near-infrared illumination to augment night vision equipment, the Command thermal imager is extremely difficult to detect with other devices, as it emits no visible light or RF energy.

Special User-Adjustable Imaging Tools

  • Active Contrast Enhancement (ACE) – a digital “Contrast” correction that allows for a smart scene optimization based on dynamic adjustments where a variety of contrast levels occur depending on relative scene temperature.
  • Second Generation Digital Detail Enhancement (DDE) – a “Sharpness” correction that is digitally enhances the picture to present clearer imagery, significantly improves edge sharpening and further reduces image noise.
  • Smart Scene Optimization (SSO) – a fine-tuning computational correction that significantly improves an overall visual acuity for targets that have thermal signatures similar to a surrounding background.
  • Automatic Gain Control (AGC) – a “Gain” correction that used to automatically adjust the gain to an appropriate range, the weaker the image signal, the stronger the gain.
  • User-Controlled Manual Non-Uniformity Correction/Flat-Field Correction (UCMNUC/FFC). There is a mechanical shutter between the camera sensor and the lens. This shutter is used to perform a non-uniformity correction (NUC) also known as flat-field correction (FFC. During FFC, the shutter presents a uniform temperature source to each detector element in the array. While imaging the flat-field source, the camera updates the offset correction coefficients, resulting in a more uniform image after the process is complete. All Command models allow for user to manually trigger or interrupt scheduled UCMNUC/FFC function.
  • Silent Shutterless NUC ™ (SSN) – In addition to user controlled manual NUC/FFC all Command models employ a digital supplemental non-mechanical flat-field correction that allows to extend the periods between mechanical shutter events and to further reduce image noise. SSN is always ON enhancement.

FEATURES

  • High-performance thermal imaging camera
  • Lightweight and robust design
  • Easy to operate
  • Manually adjustable eyepiece and objective lens
  • Real-time display
  • Special user-adjustable imaging tools
  • Current operational state information display
  • Wireless remote control
  • Analog video input and output
  • Powered by two standard CR123A batteries
  • Power input capability
  • Digital video recorder (optional)
  • Serviceability under severe conditions
  • Filled with dry nitrogen to prevent internal fogging

Specification Command 336 3-12x50 (60 Hz)

  • Magnification 2,8 (NTSC) / 3,4 (PAL)
  • Objective Lens Type Germanium
  • Objective Focal Length 50mm
  • Objective F-number 1:1
  • Type of Focal Plane Array FLIR Tau 2
  • Pixel Array Format 336×256
  • Pixel Size 17 µm
  • Display Type AMOLED SVGA 060 800x600
  • Video Recording Optional Digital Video Recorder with SD card slot
  • Operating Temperature -40°C to +50°C (-40°F to +122°F)

Technische Daten

Leistung


Bauart
Binokular (ein Objektiv)
Technologie
Thermalkamera
Vergrößerung (-fach)
3 (+ 4x Digital Zoom)
Objektiv
50mm F:1
Auflösung Sensor (Pixel)
336x256
Bilddarstellung
verschiedene Varianten
Bildtaktrate (Hz)
60
Dioptrienausgleich (dpt)
+/- 5
Batterielaufzeit (h)
4

Besonderheiten


Infrarotbeleuchter
-
Digitale Abbildung
ja
Video-Ausgang
ja
Kopfhalterung
-
Überbelichtungsschutz
ja
Tag-Nacht-System
ja
Spritzwasserfest
ja
Vorsatzlinsen erhältlich
nein

Sehfeld


Tatsächliches Sehfeld (°)
7,8
Sehfeld auf 100m (m)
13,6
Naheinstellgrenze (m)
5

Anwendungsgebiete


Objektschutz & Observation
ja
Jagd & Naturbeobachtung
ja
Navigation & Angeln
ja
Höhlenforschung & Camping
ja

Allgemein


Farbe
schwarz
Länge (mm)
238
Breite (mm)
100
Höhe (mm)
62
Gewicht (g)
800
Serie
Command

Sonstiges


Batterietyp
CR123 (4 Stück)

Empfohlenes Zubehör

Pflege & Reinigung > Reinigungsmittel (3)

Omegon Optik Reinigungsset 7 in 1

$ 19,90*
Pflege & Reinigung > Sonstiges (2)

Omegon Microfaser Reinigungstuch 20cm x 20cm

$ 4,90*
Sonstiges (1)

Varta CR123 Lithium Batterie

$ 8,90*

*Alle Preise inklusive der gesetzlichen Mehrwertsteuer, zzgl. Versandkosten.

Armasight Thermalkamera Command 336, 3-12x50 (60 Hz)

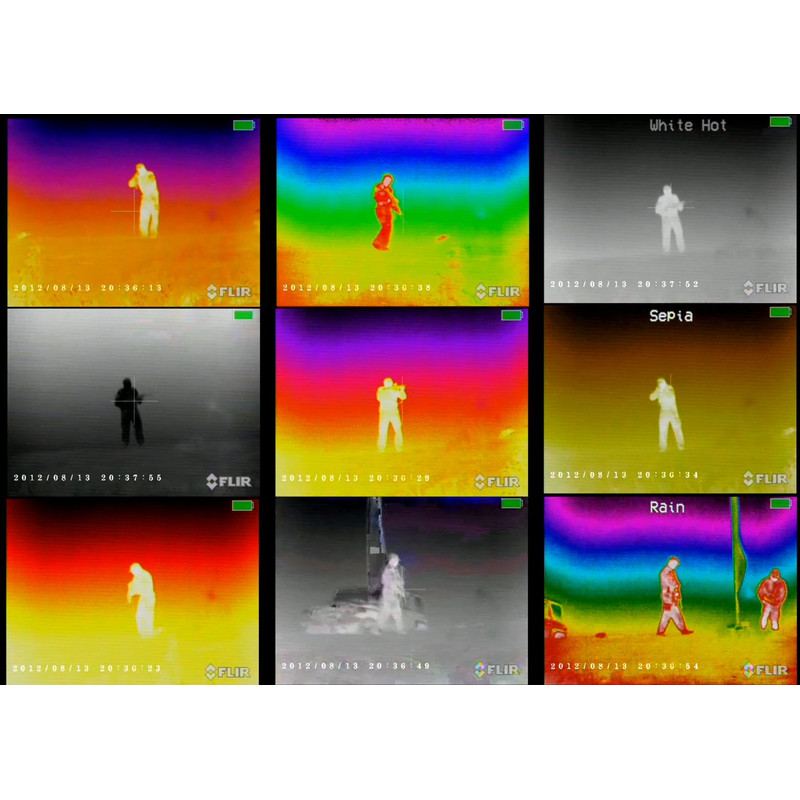

Dieses Musterbild zeigt Ihnen die verschiedenen Darstellungen der wählbaren Farbmodi.
Armasight Thermalkamera Command 336, 3-12x50 (60 Hz)

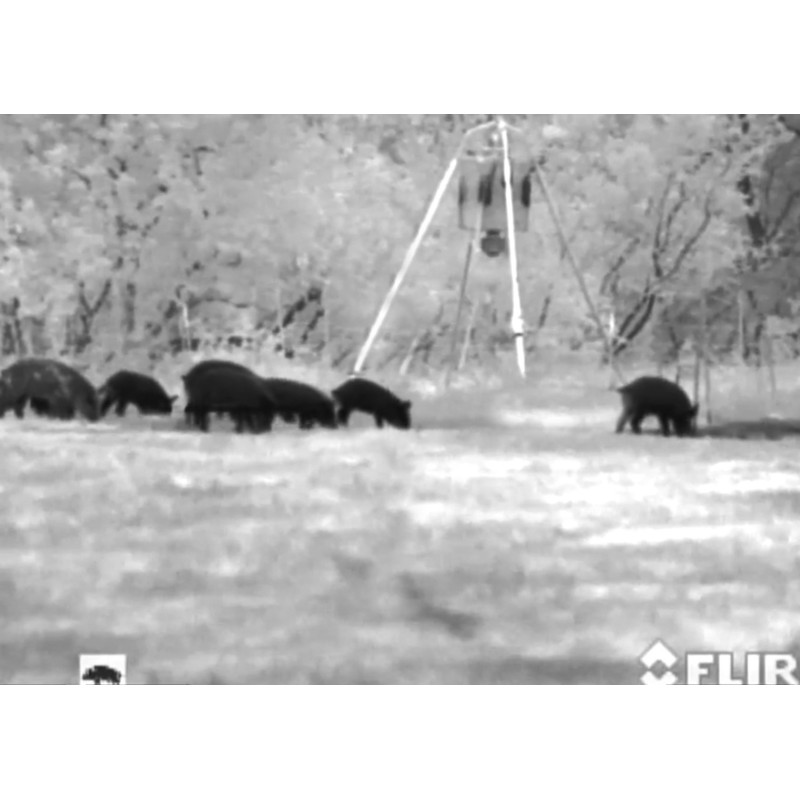

Anwendungsbeispiel 1
Armasight Thermalkamera Command 336, 3-12x50 (60 Hz)

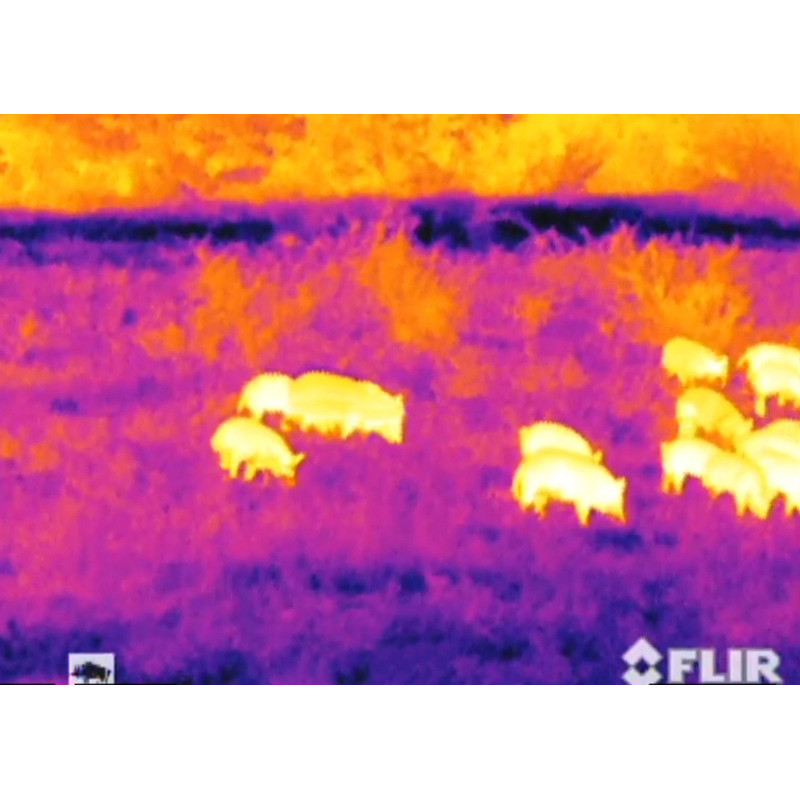

Anwendungsbeispiel 2
